Tour the WebGUI

The WebGUI is the primary interface for managing and configuring your Unraid server. It provides access to all system features, monitoring tools, and configuration options through an organized navigation bar and user-friendly screens. This layout is designed to help you efficiently manage storage, users, applications, and system settings from any web browser.

The Navigation Bar​

The horizontal navigation bar gives users access to the main functional areas of the Unraid system. You can customize it with plugins to add extra menus and options, available in the Community Applications section.

Navigation Bar - Annotated

1. Dashboard​

The Dashboard tab provides real-time monitoring of hardware and software components on your Unraid server. It displays various aspects of management - such as system identification, CPU, RAM, storage, network information, Containers, VMs, users, and shares - in a grid of tiles. Dashboard tab You can enhance the Dashboard with plugins from Community Applications and customize the display by toggling tiles on and off using the padlock in the navigation bar.

2. Main​

The Main screen enables efficient management of your Unraid storage and disk operations. You can configure your array, cache pools, and flash devices, as well as manage USB storage and unassigned devices, including remote shares. It displays key information about each storage device, such as health, capacity, and file systems. Main tab At the bottom, the Array Operation section provides maintenance options to keep your array running smoothly.

3. Shares​

The Shares screen allows you to manage individual shares on your Unraid server. It is divided into User Shares and Disk Shares.

You can access detailed information and management options for each share by selecting its name.

4. Users​

The Users screen allows management of all user accounts on the Unraid server, as detailed in the User Management section. Users tab

5. Settings​

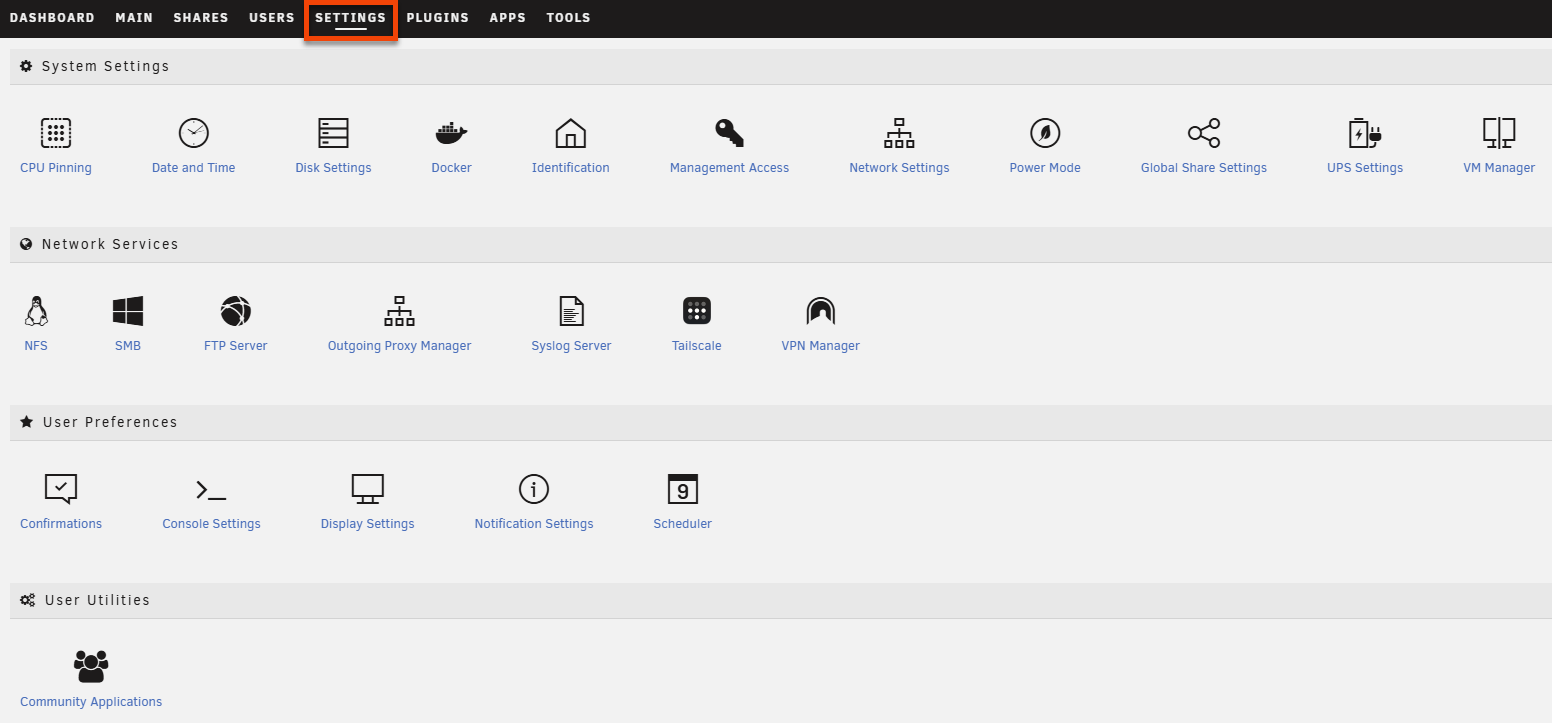

The Settings screen allows you to manage all system settings on your Unraid server, including:

  • System Settings: Configure parameters and behaviors for the core components of Unraid.
  • Network Services: Set up various communication protocols and configure your Wireguard VPN.
  • User Preferences: Adjust individual user preferences, such as notifications and display settings.
  • User Utilities: Manage individual utilities that you have added through plugins.

Settings tab

6. Plugins​

The Plugins screen shows all the plugins installed on your Unraid server. Plugins tab

note

For plugin installation steps, see Extend with Community Applications.

7. Docker​

The Docker screen displays all containers installed from Community Applications. You can launch, stop, and configure each container, including their auto-start settings.

note

For details on running Docker containers, see Using Unraid to... > Run Docker containers.

8. VMs​

The VMs screen lets you manage virtual machines (VMs) on your Unraid server. It displays all your created VMs along with their main attributes, such as CPU assignments, vDisk allocation, and graphics card settings.

note

This option will only appear in the Navigation Bar if your Unraid server meets the hardware virtualization requirements.

9. Apps​

The Apps screen, or "Community Applications," is the official source for Unraid apps. Apps tab It provides community-sourced plugins and Docker containers that enhance Unraid’s functionality beyond a basic NAS. For more details, check the Community Applications section.

10. Tools​

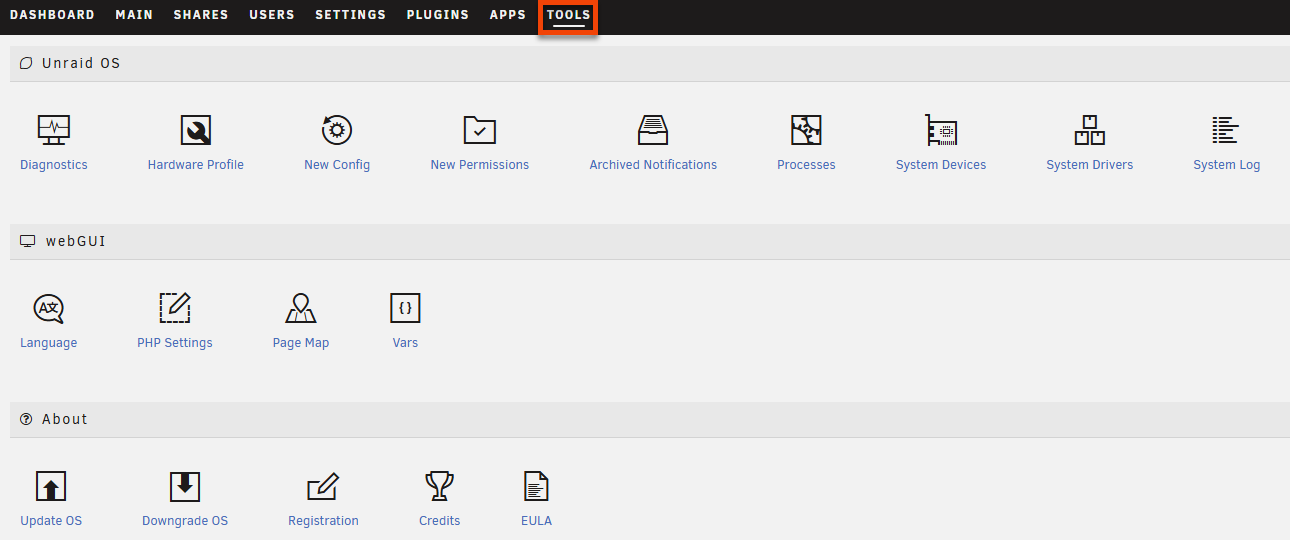

The Tools screen offers various tools for managing Unraid OS, customizing the look of the WebGUI, and system updates. Tools tab

11. System Shortcuts​

System Shortcuts

The section of the Navigation bar displays shortcuts to Unraid features, such as:

  • Logout Logout : Log out of the Unraid server.
  • Terminal Terminal: Open a terminal window.
  • File Manager File Manager: Access the built-in file manager.
  • Feedback Feedback: Submit feedback, report issues, or leave comments.
  • Info Info: View a summary of your server’s attributes.
  • Log Log: See a list of system events.
  • Help Help: Enable help for the current screen.
  • Notifications Notifications: View system alerts, warnings, and notices.

12. Account Options​

In the top-right corner of the WebGUI, next to your server name, is the hamburger menu. This menu allows you to manage your Unraid account, access Unraid Connect, upgrade your license key, and log out.

If you're in trial mode, you can also redeem your license key here to activate Unraid as Basic, Plus, or Pro.

13. Status Bar​

Status Bar The status bar at the bottom of the WebGUI shows the current state of your array and the status of ongoing operations like Mover or parity checks. Some plugins also display important information, like system temperatures.
